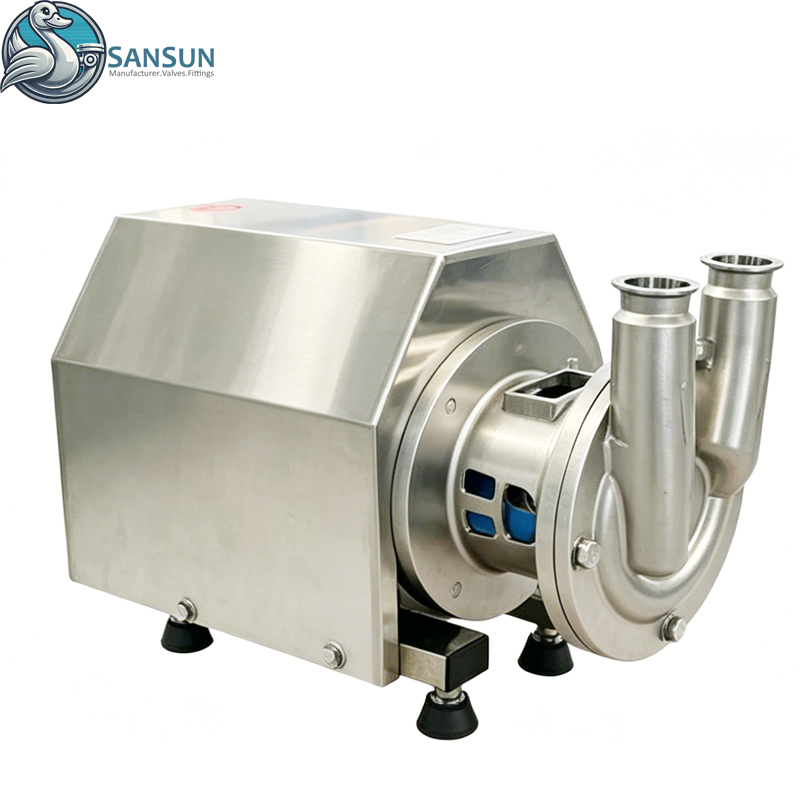

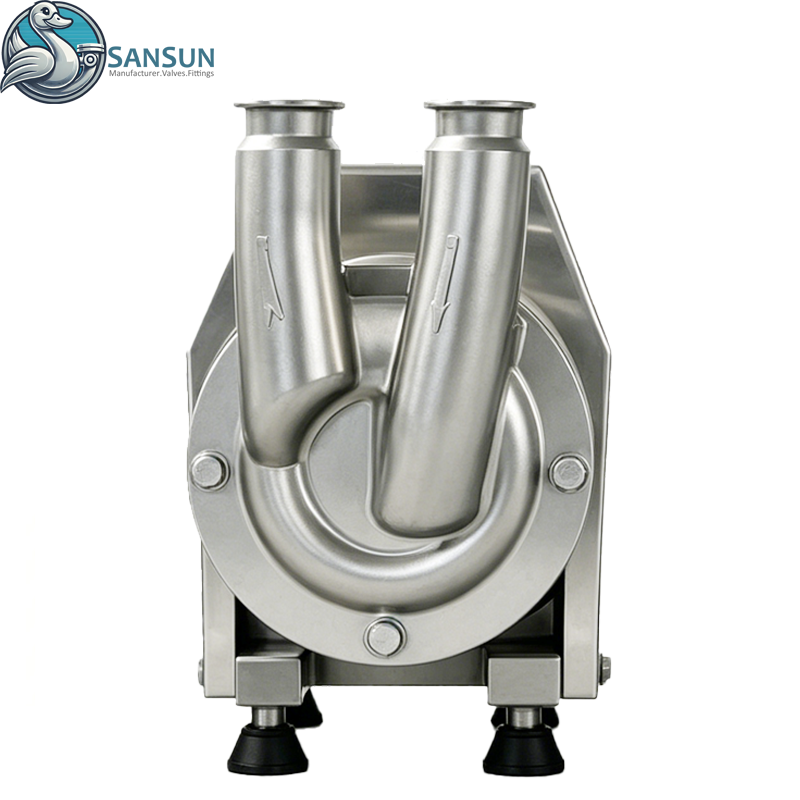

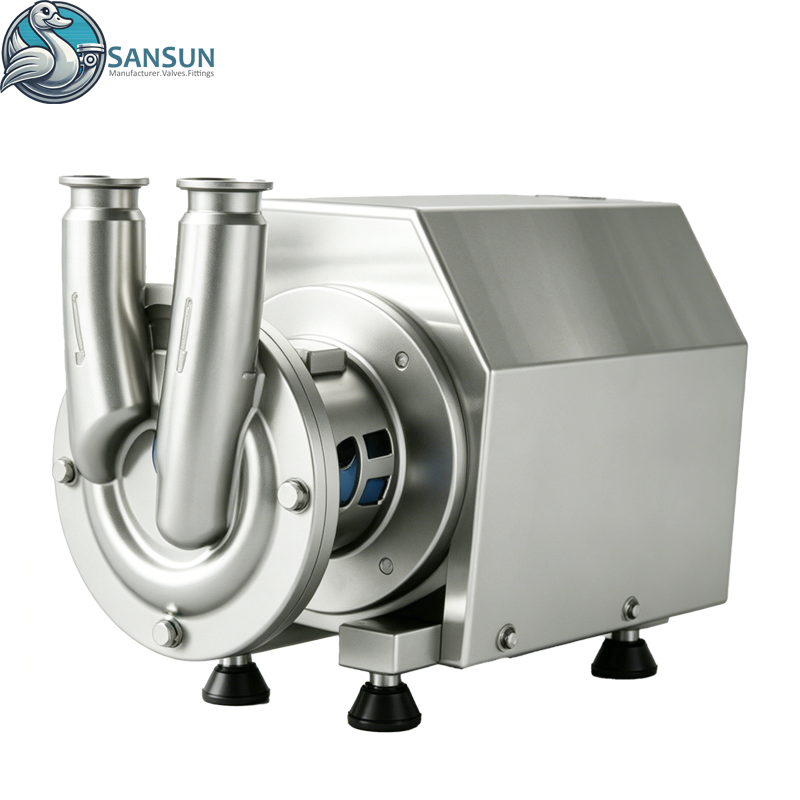

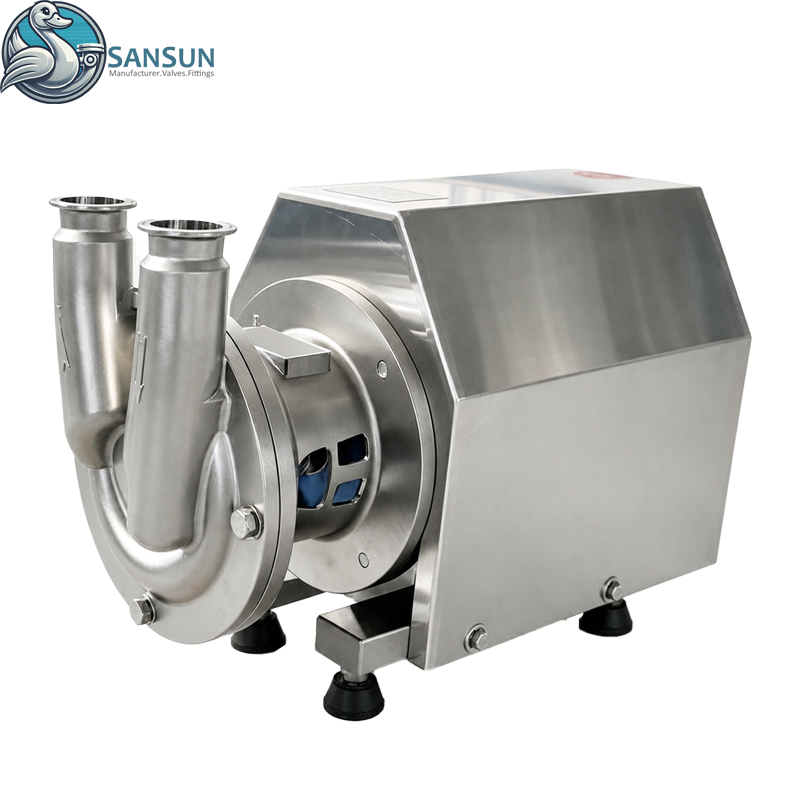

316L Stainless Steel Sanitary CIP Self Priming Centrifugal Pump

Sanitary stainless steel self-priming pump is specially designed for medium conveying and circulation. It delivers outstanding self-priming performance with no pre-filling required before operation, ensuring high flow rate and stable liquid delivery.
Crafted from high-grade full stainless steel, the pump features a smooth inner wall with no dead corners, excellent corrosion resistance and long service life. It complies with industrial and sanitary standards, operating steadily with low noise, and is easy to install and maintain.
Widely used in food processing, dairy, beverage, pharmaceutical and fine chemical industries, it is ideal for liquid circulation and medium transfer in hygienic production systems.
tamaño:
Material:
Estado de Disponibilidad:
Cantidad:
  • SANSUN

Size 1 1/2"-4" (DN40-DN100)
Valve Body Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Valve Disc Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Helium Leak Test: <1 × 10⁻⁹ mbar・l/s
Cleanliness: Passivation treatment, Conforms to ASTM A380 standard
Specification: 1T-500T,2.2KW-15KW
Seal: single seal (standard), double mechanical seal (option), SIC/C, SIC/SIC
Motor Brand: ABB motor, Simens
Availably standard: DIN/3A/SMS
Certification US 3-A, FDA, CE PED/2014/68/EC, Certification
Application scope:

Sansun's centrifugal pumps fully comply with OCP specifications. They are widely used for industrial fluid delivery and circulation in various piping systems.

Drawing

421_sansun-factory-workshop-china-manufactuer-laser-marking (2)
